Name: pinsheng 3.2V 100Ah 200Ah LiFePO4 Lithium ion Battery Cell for Vehicle
Brand: Hunan Pinsheng Energy Technology Co., LTD.
SKU: pe2246
Price: 3,841.00 USD
Availability: InStock

Heim > produits > Energie-Speicher-Lithium-Batterie >

pinsheng 3.2V 100Ah 200Ah LiFePO4 Lithium ion Battery Cell for Vehicle

200Ah Lithium-Ionen-Batteriezelle

Fahrzeug-Lithium-Ionen-Batteriezelle

200h Lifepo4 Batteriezelle

Herkunftsort:

Hunan, China

Markenname:

pinsheng Energy

Zertifizierung:

Modellnummer:

pe2246

Dokument:

Produktbroschüre PDF

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Produktname::

Lithium-Batterie LiFePO4

Vorbildliches Number::

pe2246

Kapazität::

280AH

Nennspannung:

3.2V

Speicherart::

Standard

Siegelart::

versiegelt

Anwendung::

Solarenergie-Speicher-Systeme

Zyklusleben::

3500times

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Lieferzeit

15-25 Arbeitstage

Zahlungsbedingungen

T/T, Western Union, MoneyGram

Versorgungsmaterial-Fähigkeit

Monat 30000+set+per

VERWANDTE PRODUKTE

Video

Energie des pinsheng Lithium-Li-Ionbatterie-Satz-48v 50ah 100ah 150ah 200ah Lifepo4 Solarder batterie-10kwh

Beste Preis erhalten

Video

pinsheng Batterie wieder aufladbarer Lithium-Ionen-Batterie 72v 60v 48v 36v 24v 80ah 60ah 40ah 20ah lifepo4/nmc für e-bike/tirycle

Beste Preis erhalten

Video

Tiefe Zykluslithium-ionen-batterie 24V 48V 60V 72V 20ah 40ah 50ah lipo Batteriesätze für e-bike/e-scooter/motorcycle Batterie

Beste Preis erhalten

Video

pinsheng Deep cycle 48v 60v 72v 30ah 40ah 60ah 80ah e-bike lipo battery

Beste Preis erhalten

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

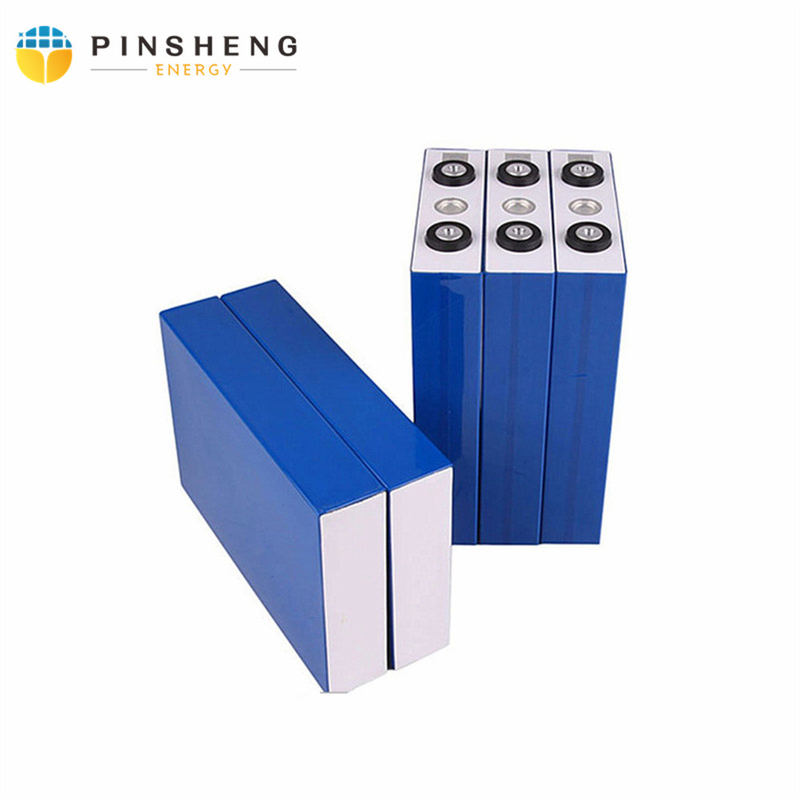

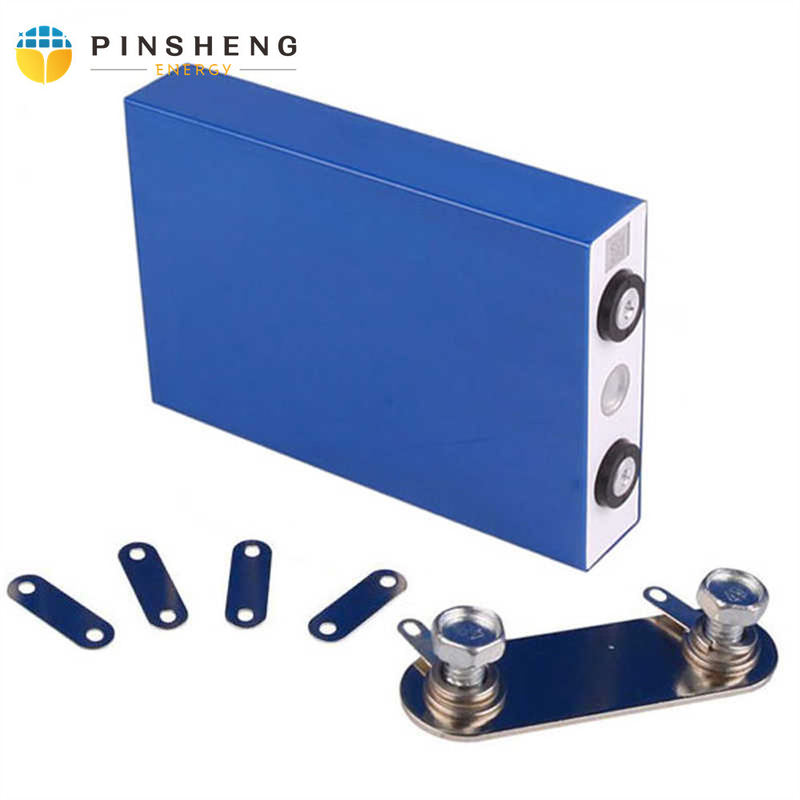

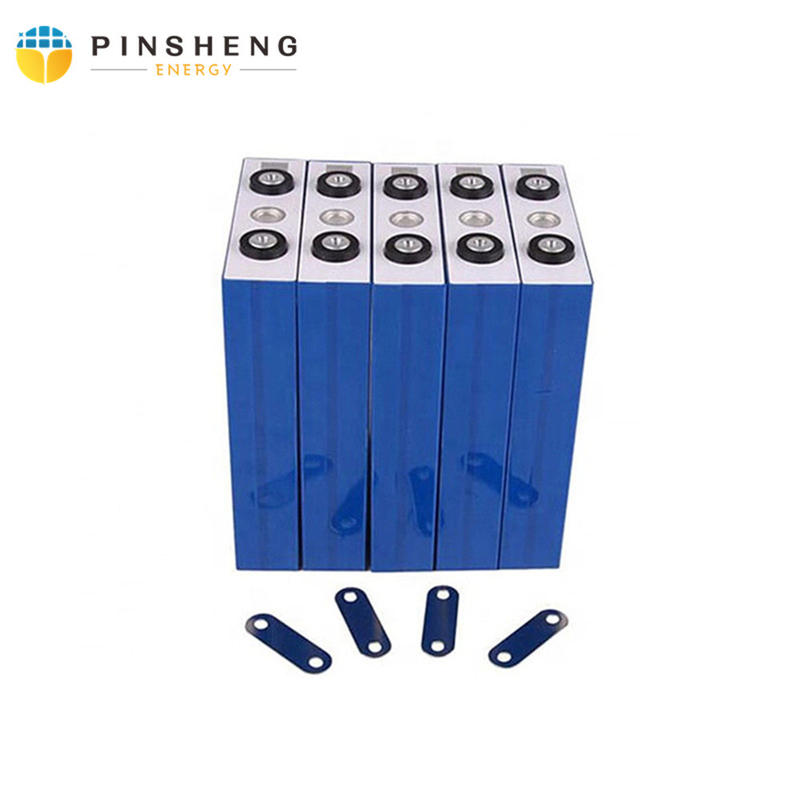

pinsheng 3.2V 100Ah 200Ah LiFePO4 Lithium ion Battery Cell for Vehicle 0

Key Features of Pinsheng Lithium Battery

Long life, large capacity and good shock resistance2. Low self discharge and good discharge performance at low temperature

Strong charing acceptace and quick- charging capability
Storage over- discharge resistance and charge retention
Maintenance-free and no acid or water for mantence in usage
Excellent large current discharge performance, and have obvious

advantages in startup and climing
High temperature performance
Environmental friendly
Lighter weight smaller size
Good service

Specifications:


						Items

						Specifications

						Nominal Voltage

						3.2V

						Nominal Capacity

						280Ah

						Standard Charge Current

						0.2C-0.5C

						Max. Charge Current

						1C

						Continuous Discharge Current

						1C

						Peak Discharge Current

						2C

						Charge Cut-off Voltage

						3.9V

						Discharge Cut-off Voltage

						2V

						Inner Resistance

						≤ 0.3mΩ (At 0.2C rate, 2.0V cut-off)

						Weight

						5.5kg

						Dimension

						Length: 205mm

						Width: 175mm

						Thickness: 72mm

						Operating Temperature

						Charging: 0°C ~ 45°C

						Discharging: -20°C ~ 55°C

						Storage Temperature

						optimal store temperature of 23 ± 5°C for long term storage

						Life Cycle

						≥3500 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)


						Gravimetric Energy Desity(Wh/kg)

						110-190

						20-50

						Volumetric Energy Density( Wh/Kg)

						170-310

						60-90

						Cycle Durability

						>3000 cycles

						300-500 cycles

						Self discharge Rate

						<2%

						<4%

						Discharge Rate

						10C

						1C

						Installation

						Smallsize and light weight ,about40% of the weight of a comparable elead acid battery

						Big and heavy, difficult to install

						Maintenance

						No need for regular maintenance

						Regular manintenance staff required

						Enviromental Protection

						Freee of hearby metals, safe and pollition free recycling utilization rate is high

						Containing hearvily pollutiong and toxic substances ,such as lead,arsenic, mercury

						Superior safety

						lihtium Iron phosphate chemistry reduces the ris of explosion of combustion
